SpyCloud Investigations - Splunk

Version: 1.2.0
Date: April 2026

Introduction

The SpyCloud Investigations App for Splunk allows users to query and interact with data from the SpyCloud Investigations API.

Contents

The integration includes:

• Visual Query UI to allow querying the SpyCloud Investigations API data from within Splunk, including visualizations and export capabilities.
• Two custom search commands for use within SPL:
  • scinvget – a generating custom command used to search for data within the SpyCloud dataset
  • scinvsearch – a streaming custom command used to enrich existing data within the SpyCloud dataset

Requirements

• A Splunk license and compatible version of:

  • Splunk Enterprise or Splunk Cloud
  • Platform Version: 10.3, 10.2, 10.1, 10.0, 9.4, 9.3, 9.2, 9.1
  • CIM Version: 8.x, 6.x, 5.x, 4.x, 3.x

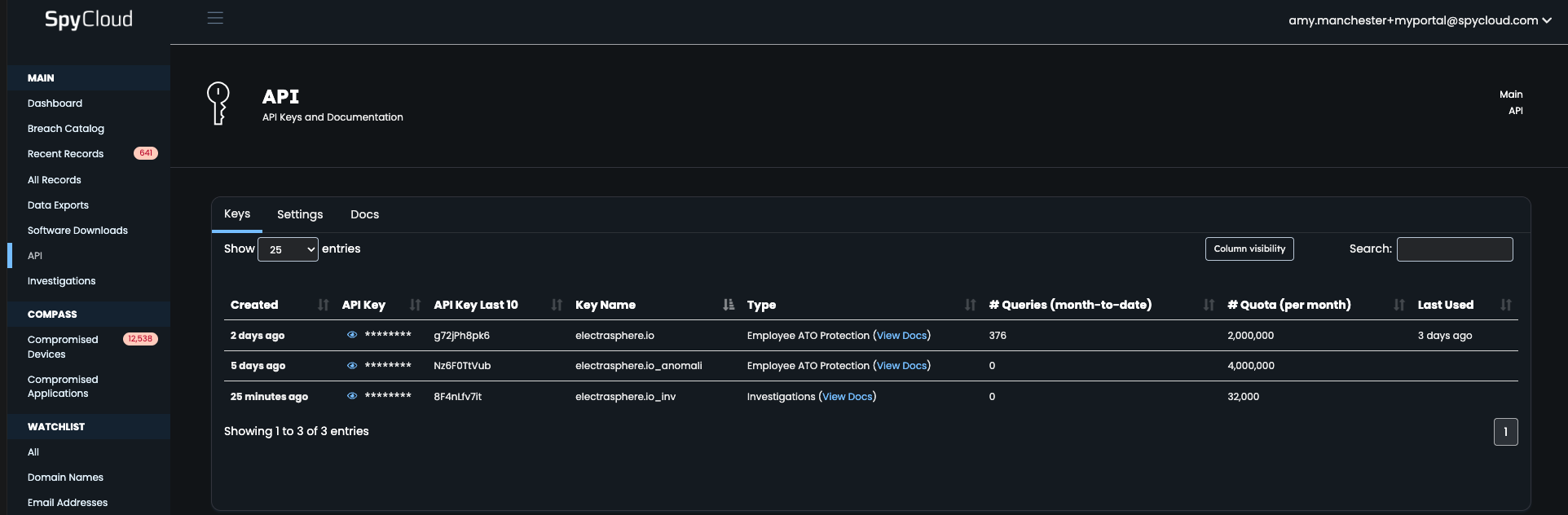

• A SpyCloud Investigations license with an API key (available at: https://portal.spycloud.com/api)



Installation

There are two main ways to install the integration:

• Download from SplunkBase or the SpyCloud Customer Portal and install manually
• Install via Splunk by selecting Find More Apps and searching for SpyCloud

Install from File

1. Click the gear icon next to Apps
2. Click Install app from file
3. Select the .spl file and click Upload
4. Click Set up now

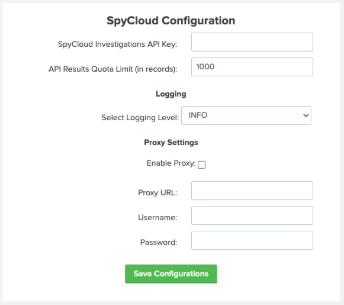

5. Enter:
   • SpyCloud Investigations API Key
   • (Optional) Proxy settings
   • Logging and API quota settings
6. Click Save Configuration

After setup, the Breach Catalog will begin populating automatically.

Search Head Cluster Considerations

If using a Search Head Cluster (SHC):

• API credentials are shared across all search heads
• Configure credentials once and deploy via the deployer
• Ensure proper deployment to avoid setup redirects or alerts

Additional Configuration

Access via SpyCloud Configuration the app.

You can update your API key anytime.

API Results Quota Limit

• The API enforces monthly quota limits
• You can configure a maximum number of records returned
• Each API call can return up to 1000 results

Example:

• 9,600 results = 10 API queries

Logging

Available logging levels:

• DEBUG
• INFO
• WARN
• ERROR

Running a Query

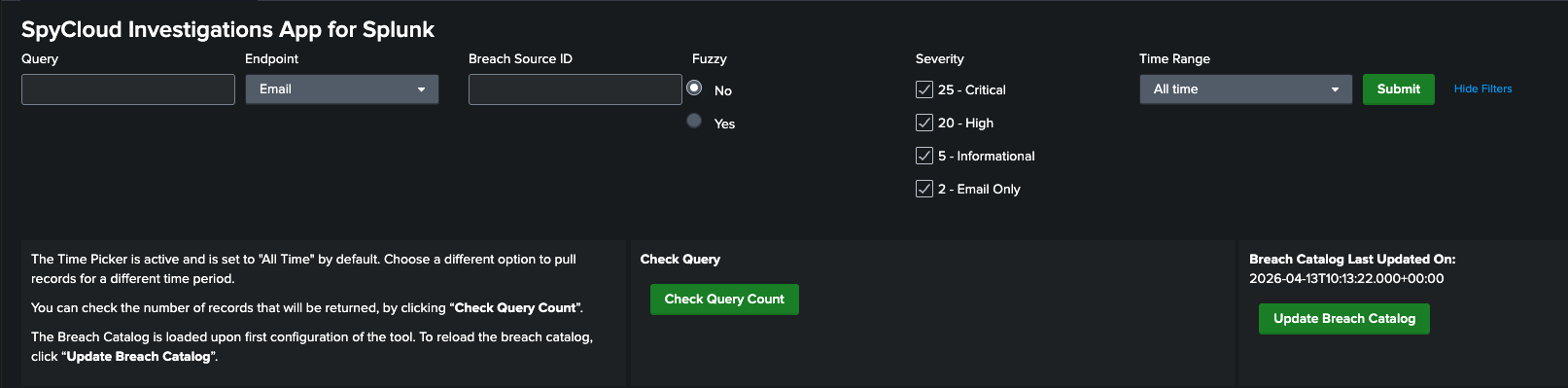

To run a query:

• Select options and click Submit

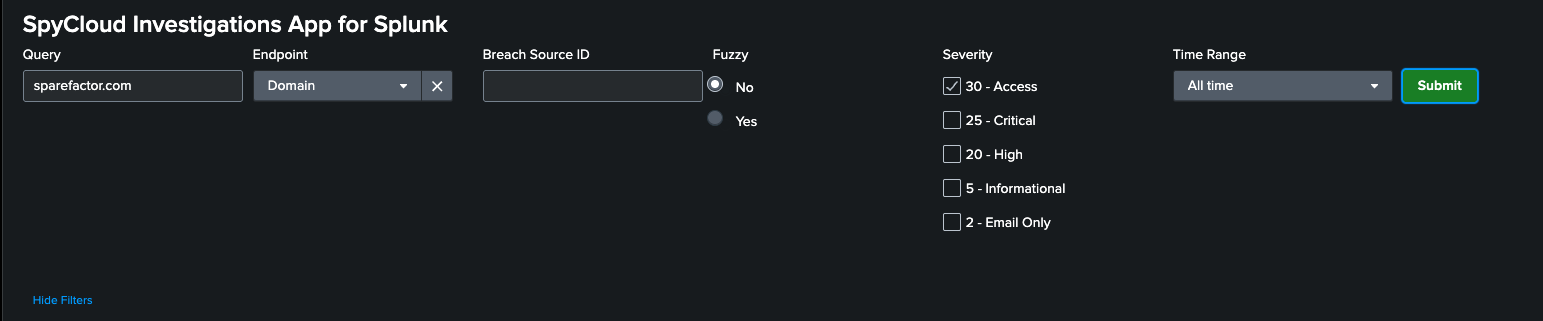

Fields

• Query – search term (email, domain, username, etc.)
• Endpoint – API endpoint to query
• Breach Source ID – optional filter
• Fuzzy – enables fuzzy search
• Severity – filter by severity
• Time Range – define search window

Notes

• Errors show as a red triangle
• Common issues:
  • Exceeding quota
  • API key restrictions

Additional Features

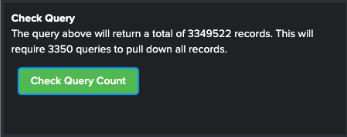

• Check Query Count – preview result size before running
• Export results (CSV, XML, JSON)
• Open query in Splunk search for further analysis

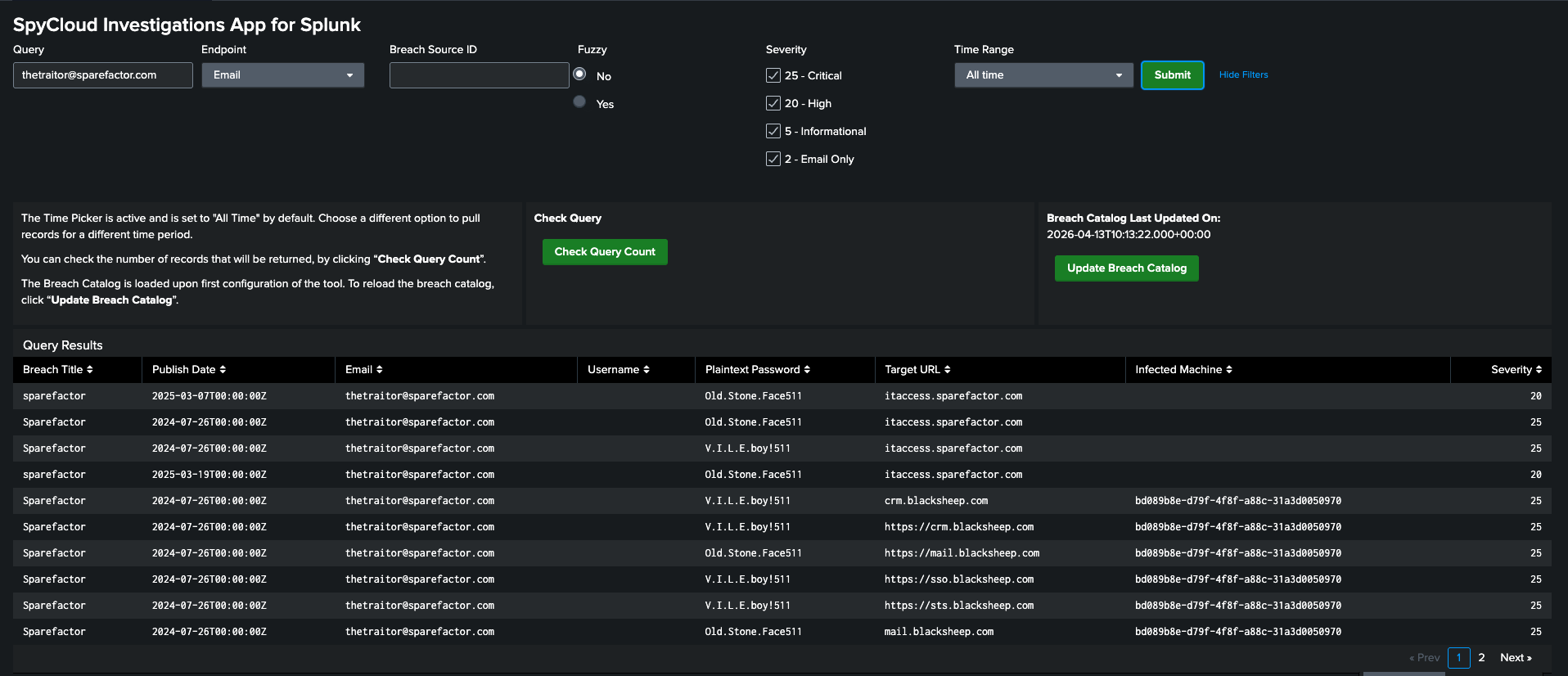

If your query is successful, you will see the results and can page through them

Managing Query Quota

To manage API usage:

• Set max record limits in configuration
• Use Check Query Count before running queries

If a query exceeds limits:

• A warning appears in the UI
• You can:
  • Refine the query
  • Increase the quota limit

Managing the Breach Catalog

• Populated during initial setup (~38,000+ entries)
• Requires multiple API queries

Options

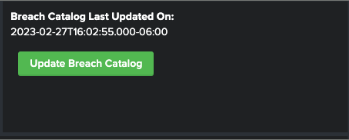

• View last updated timestamp in UI
• Click Update Breach Catalog to refresh

⚠️ Note: Updating consumes API quota

Using the scinvsearch Custom Command

Example

| makeresults
| eval query="[email protected]"
| scinvsearch endpoint=email field=query fuzzy=true source_id= severity=25
| spath input=results
| fields - results

Using the scinvget Custom Search Command

Example

| scinvget endpoint=email field="[email protected]" fuzzy=false source_id= severity="25,20"
