Requirements

This page outlines the software, hardware, permissions, and network configurations required to run Active Directory Guardian (ADG) 7.3 in your environment.

💻 Platform & Browser Compatibility

Component	Requirement
Supported OS	Windows 10 (workstation) Windows Server 2012 and later
Browser	✅ Google Chrome (v89+) ✅ Microsoft Edge (v91+) ❌ Internet Explorer is not supported
.NET Framework	4.8 or higher (required)

👤 Required Permissions

Permission Type	Details
Local (for install)	• Install software • Configure Windows service • `Log on as a service` permission
Active Directory	• Reset user passwords • Force password change at next login • Read/write: `lockoutTime`, `pwdLastSet`, `userAccountControl` • Replicating Directory Changes • Replicating Directory Changes All

Best practice: Assign these permissions to a group via Delegate Control, then assign your service account to that group.

⚠️
Note: If group policy overrides group permissions, grant them directly to the service account.

🧮 Hardware Specifications

Component	Minimum Spec	Notes
Memory	8 GB RAM	More is better for large banned password lists or fuzzy scans
Storage	20 GB	For logs and hash cache
CPU	2 GHz+ (multi-core)	More cores = faster scanning. ADG uses one thread per core

🧠
If access to the domain controller or SpyCloud API is slow, ADG will limit to one CPU core for processing.

Definition of “Slow”:
When fetching one account from the DC takes longer than scanning it locally.

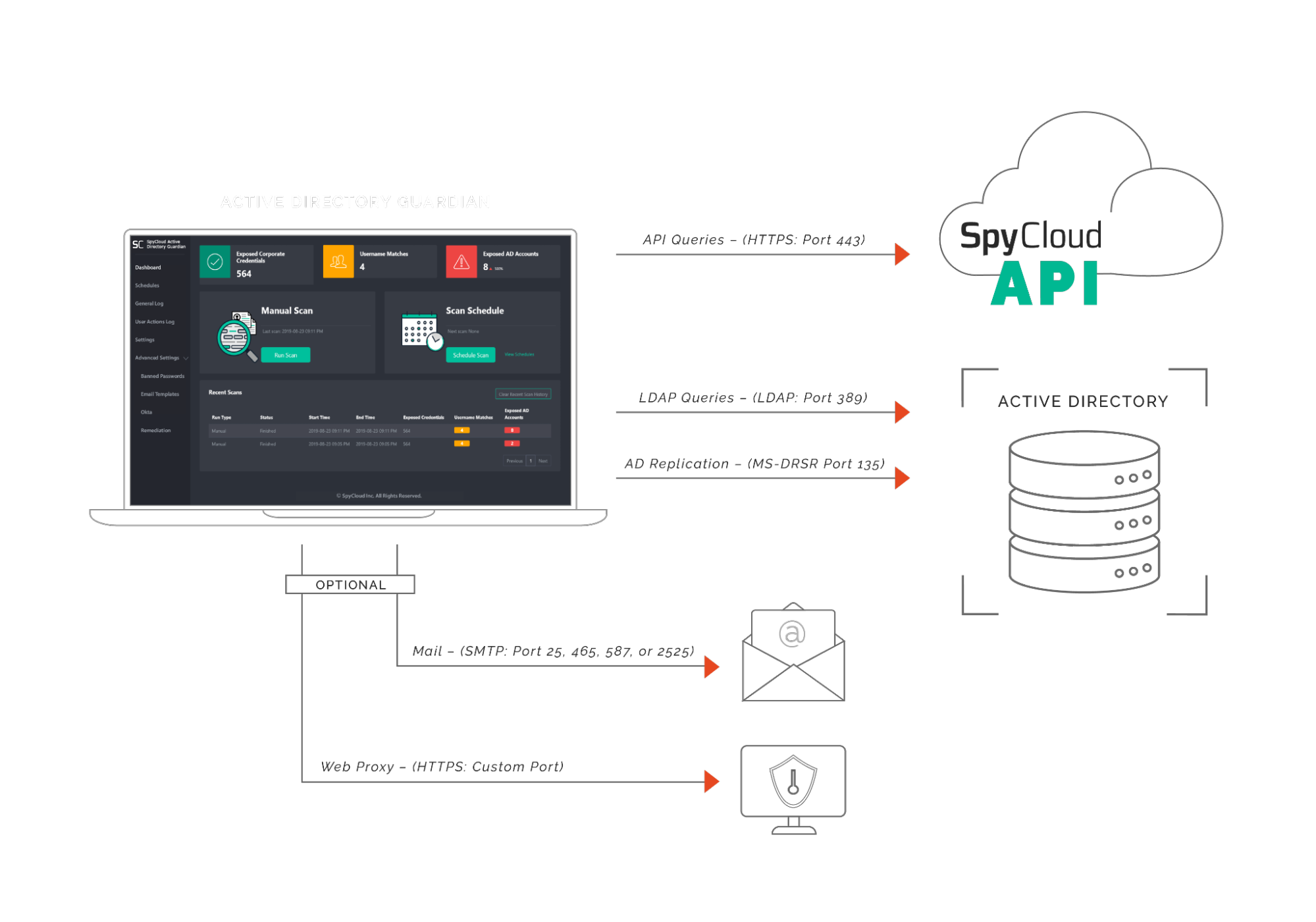

🌐 Network Access & Ports

ADG communicates with internal infrastructure and external APIs using specific ports. The following sections outline the necessary access requirements.

🔄 Internet Connectivity

🌐External API Communication

Port 443 (HTTPS) is required for outbound access to the SpyCloud API
Make sure *.spycloud.com is reachable from the ADG host

🖥️ Active Directory Communication

🧩Local AD Connectivity

ADG requires internal network access to your domain controllers on the following ports:

Port 389: LDAP
Port 135: MS-DRSR (Active Directory replication)

🧱 Proxy Environments

If your environment uses a proxy for outbound traffic:

Open your proxy's specific port for outbound HTTPS
Allow access to *.spycloud.com
Ensure DNS resolution is available for external domains

✉️ SMTP Configuration (If Using Email Alerts)

Use Case	Common Ports
SMTP outbound	`25`, `465`, `587`, `2525`
Admin Notes	Check with your SMTP administrator to confirm which port is used
